Innovative Feeder Technology

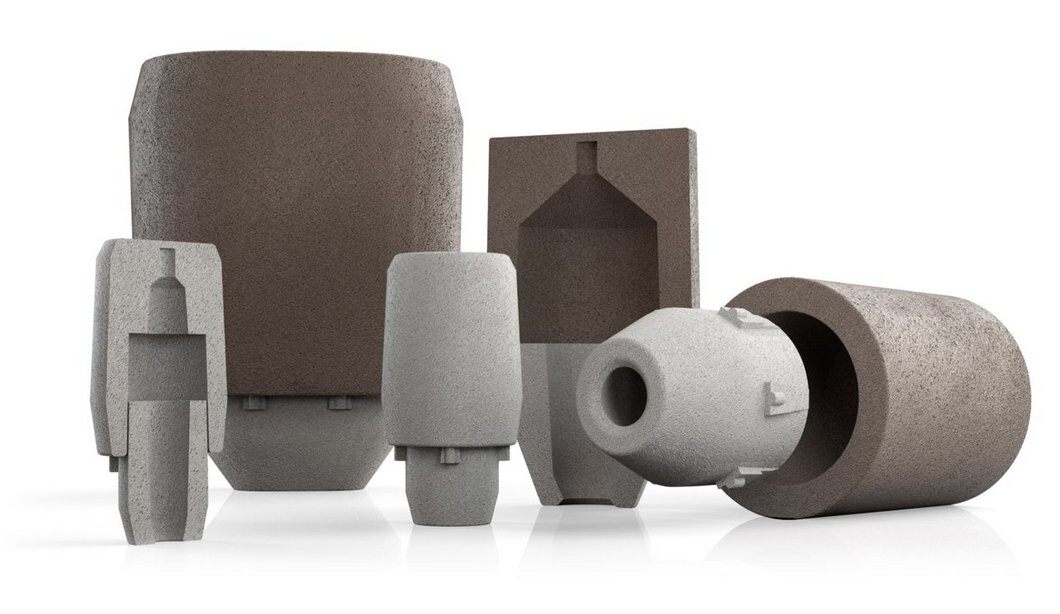

The Chemex Tele-Feeder System has more than proven its worth, especially in horizontally parted molding lines subject to high-pressure resistance.
After placing the feeder on the pattern plate, the upper section of the feeder slides telescopically over the lower section during the compaction process. This means that the lower section is practically not exposed to pressure and, therefore, damage.
The Chemex Tele-Feeder System has proven itself not only in hand molding but also with all common alloys in the non-ferrous sector for cast iron and steel casting.
Higher output, lower separation, and cleaning costs
At the same time, shifting the upper part leads to additional compaction of the molding sand underneath (transition area between feeder and casting), precisely where shadows of poorly compacted sand may occur in other feeding systems. The range of applications of the Tele-Feeder System has been extended over the years. With its Tele(scopic)-Feeder technology, Chemex has developed a highly effective solution that is being used by more and more foundries every day.
Benefits of the Tele-Feeder System
Tele-Feeders were primarily developed for horizontal molding lines. Thanks to their proprietary telescopic technology and the ongoing development of innovative formulations and geometries, Chemex Tele-Feeders offer a range of significant advantages for our customers:
-
Higher yields
-
Lower melting costs
-
Lower scrap rates
-
Fluorine-free formulations
-
Minimal contact area to the casting
-
Less fettling required
-
Heated feeder neck
-
Use of maintenance-free positioning aid
The EK-Shape
- Less exothermic material thanks to thinner wall thickness than CD shape
- Specially developed telescope effect
- Easy to place on the pattern plate
- Fluorine-free formulations prevent surface defects
The CD-Shape
- More exothermic material and a more massive, complex outer geometry result in higher output than the EK Shape
- Telescopic effect
- Also available with oval passage for better casting placement
- Fluorine-free formulations
