Telescopic Technology for vertical molding lines

Side risers have been specially designed for use on vertically partitioned molding lines.

Two product lines are distinguished. The first is the Tele-Side-Feeder-System, which is suitable for molding on the pattern plate, analogous to the classic Tele-Feeder-System for horizontal molding lines. Chemex also offers insert sleeves that can be inserted into the mold bales manually or with the help of the core inserter after the compaction process.

Side-Riser-1

Benefits of the Side-Insert-Sleeve

Chemex Tele-Side-Risers are specifically designed for use in vertically partitioned molding lines. With a choice between Tele-Side-Risers and innovative Side-Insert-Sleeves, our selection of side risers offers a wide range of benefits for foundries:

  • Higher yields

  • Lower melting costs

  • Fluorine-free formulations

  • Lower scrap rates
  • Minimal footprint

  • Less fettling required

  • Heated feeder neck

  • Innovative telescopic technology

Our Tele-Side-Risers

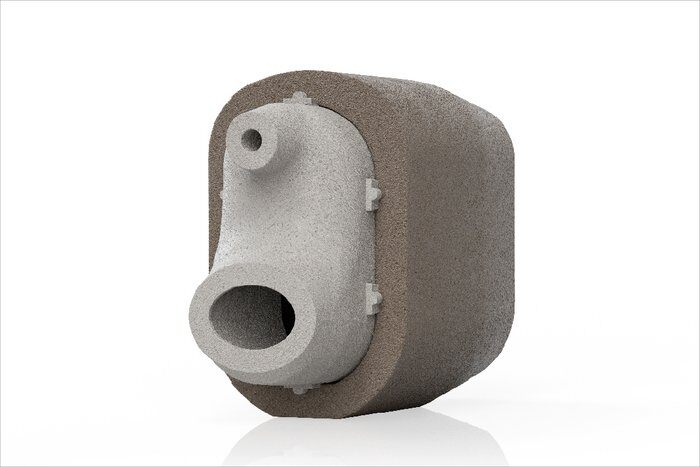

csm_chemex_tele_seiten_speiser_solo_Rahmen_2021_04_22_394440f906



  • Telescopic technology, especially for vertical molding lines.

  • Increase in realizable unit weights and plate loading.

  • Good venting via the feeder, no gas-induced casting defects.

  • Free positioning on the pattern plate

  • Flourine-free formulations

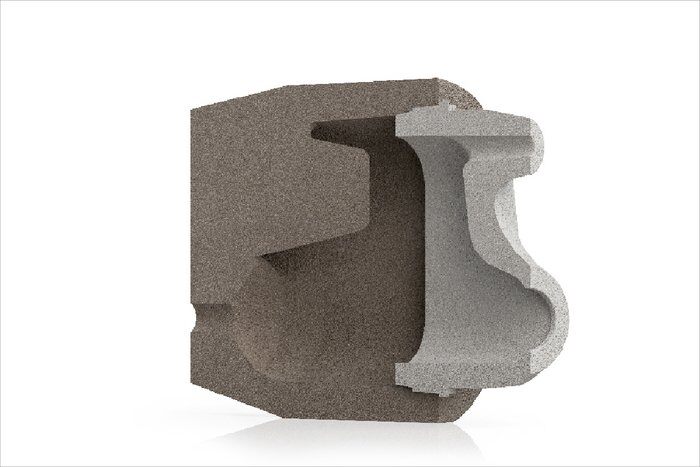

csm_chemex_tele_seiten_speiser_solo_Rahmen_2_2021_04_22_426c7ae189
